What Are Straight Cut Gears and How Do They Work
Have you ever heard a race car's gearbox whine and wondered what causes that distinctive sound? A straight cut gear (also known as a spur gear) is a fundamental transmission component whose teeth are cut parallel to the axis of rotation, unlike the angled teeth of a helical gear. This design eliminates axial thrust, a force that pushes the gear sideways in helical designs. The absence of this thrust leads to lower friction, higher efficiency, and increased durability, but also creates the loud whine. This article explains how these gears work, why they are used in high-performance transmissions and heavy industrial machinery, and the trade-offs for street driving.
Key Takeaways
Straight cut gears have teeth parallel to the axis, which eliminates axial thrust and boosts efficiency.
These gears are common in racing and heavy machinery because they transfer power with minimal loss.
The main drawback is the loud whine from abrupt tooth contact, which is unsuitable for daily driving.
Helical gears are quieter and smoother, making them better for street cars.
Straight cut gears are simpler and more durable, with fewer parts that can fail.
They handle high torque well, but helical gears can share loads across more teeth.
Choose straight cut gears for performance and reliability, not for comfort.
What Are Straight Cut Gears?
A straight cut gear features teeth cut parallel to the axis of rotation. This design creates a simple, efficient method of power transfer. Think of a motorbike sprocket. The teeth on a sprocket run straight across the face. A straight cut gear works the same way. The teeth engage directly with no twist or angle. This fundamental shape defines the gear's behavior. The straight cut gear differs from other gear types in one key way. The teeth do not lean. They stand straight. This single difference changes everything about how the gear performs.
Defining the Straight Cut Gear
Visualizing the Gear Teeth
Picture a metal cylinder. Imagine cutting grooves straight across its surface. The grooves run parallel to the cylinder's centerline. These grooves become the gear teeth. The tooth width stays uniform along the entire gear face. When two straight-cut gears mesh, the teeth make direct line contact. The entire tooth width engages at the same instant. This engagement is abrupt. It causes impact loading and vibration. This gear, commonly called a spur gear, features teeth running straight and parallel to the gear's axis of rotation. The uniform tooth width and direct line contact define its mechanical behavior.
The straight-cut gear, commonly called a spur gear, features teeth running straight and parallel to the gear's axis of rotation, uniform tooth width along the gear face, and direct line contact when meshing.
This definition captures the essential geometry. The teeth are simple. The manufacturing is straightforward. A hobbing or shaping machine can cut these teeth quickly and cheaply. The simplicity of the tooth shape leads to lower production costs.
The Common Alternative: Helical Gears
Helical gears look different. Their teeth are cut at an angle to the axis. This angle creates gradual engagement. The teeth slide into contact instead of slamming. This reduces noise and vibration. But it creates a problem. The angled teeth generate axial thrust. This force pushes the gear sideways along the shaft. Engineers must add thrust bearings to manage this load. The gearbox becomes more complex. A helical design also loses energy to friction from the sliding contact. Straight-cut gears avoid this issue entirely. They produce no axial thrust. The bearing selection becomes simpler. The overall gearbox design becomes lighter and more compact. On a tooth-to-tooth comparison, a helical gear can carry a larger load due to its diagonal positioning. But the straight-cut gear offers higher efficiency because no energy is lost to axial thrust.
Where You Typically Find Them
The Signature "Gear Whine"
The most noticeable characteristic of these gears is the noise. The abrupt full-width tooth contact creates a loud whine. This sound becomes more intense at higher speeds. The teeth do not slide into place. They slam together. This generates vibration and sound energy. The operation is often described as brutal. The teeth slam into place. Smooth launches become difficult. Some drivers find the noise exciting. It signals raw power. Other drivers find it unbearable for daily use. The noise is a direct result of the gear design. It is not a sign of poor manufacturing. It is an inherent feature of the gear type. Cars often use both gear types. Helical gear sets work in forward gear. A straight cut design handles the reverse gear. This is why reverse gear makes a significantly louder whining sound than the forward direction.
Common Applications in Motorsports
Racing cars and high-performance vehicles use straight-cut gears extensively. The primary goal in motorsports is maximum power transfer. Every bit of horsepower must reach the wheels. These gears provide higher efficiency. They waste less energy to friction. The layout also benefits from the simpler design. A straight cut gearbox requires fewer components. No thrust bearings are needed. This saves weight and reduces complexity. The types of straight cut gearbox found in racing include dog engagement gearboxes. These allow fast shifts without a clutch. The driver can change gears under full power. This is essential for competitive racing.
Heavy-duty bull gears and large transmission rings are common in industrial equipment, gear pumps, hoists, and milling machines. Construction machinery relies on them for heavy load handling. Agricultural machinery uses them in tractor travel gearboxes. The reverse gear in many manual transmissions uses a spur gear. This is why reverse gear makes a whining sound. This design handles high torque well. It also simplifies the gearbox construction. The absence of axial thrust makes the transmission more reliable. Mining equipment and oil extraction machinery also benefit from straight cut gear designs. These applications demand stable performance and long service life.
How Straight Cut Gears Work

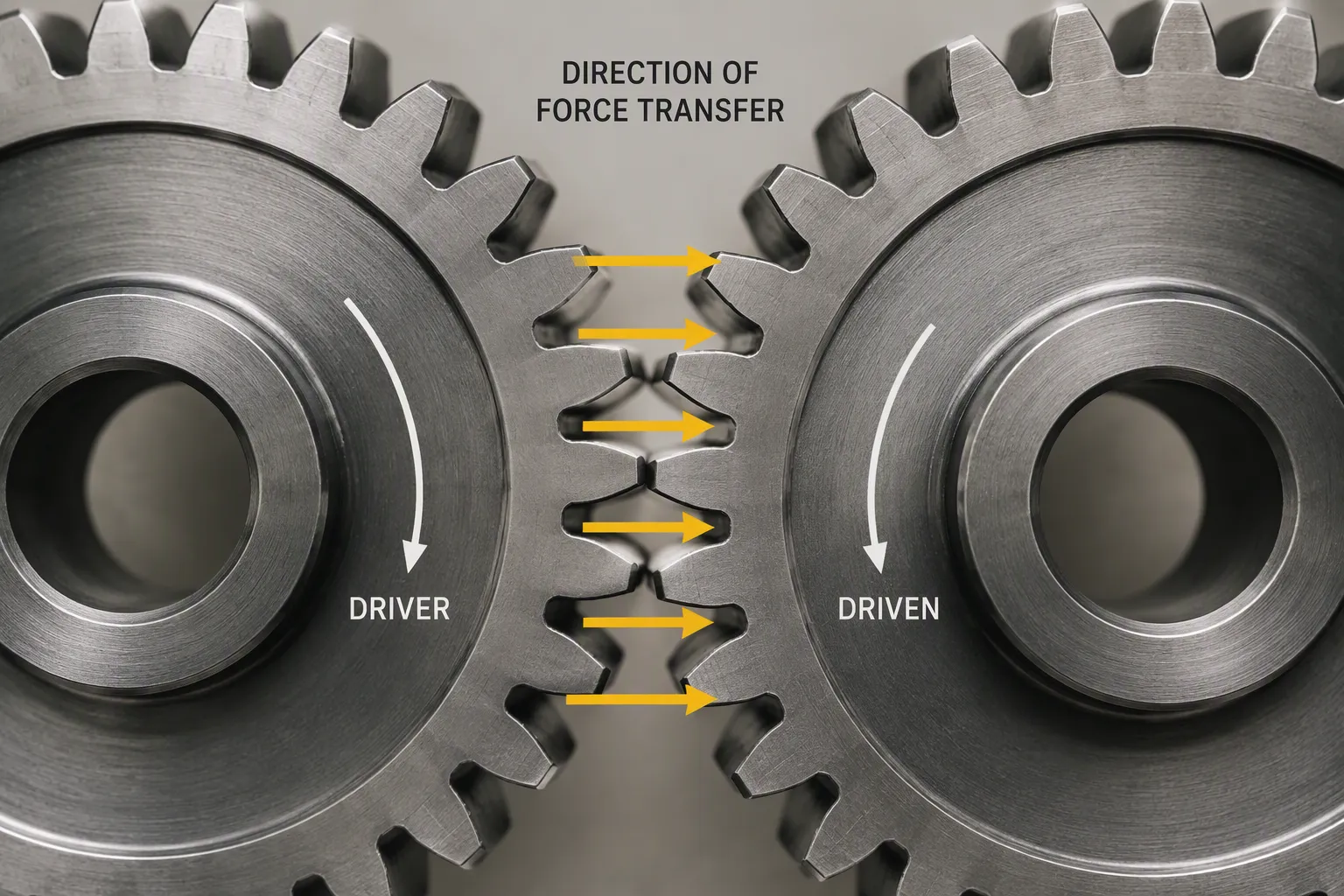

The Physics of Tooth Engagement
Direct Contact and Force Transfer
The operation of a straight cut gear relies on a simple mechanical principle. When two straight-cut gears mesh, the entire width of each tooth comes into contact simultaneously. This full-face engagement creates an abrupt and direct connection between the driving gear and the driven gear. The line of contact spans the complete tooth face at once, rather than progressing gradually across the surface.
This simultaneous contact changes how force transfers through the system. The driving tooth pushes directly against the driven tooth along a straight line. No sliding motion occurs between the tooth faces. The force vector points perpendicular to the tooth surface, straight through the gear center. This direct push delivers power with minimal loss. The energy from the engine or motor passes through each gear pair with nearly perfect mechanical advantage.
The abrupt engagement does produce a trade-off. Each tooth pair slams into contact rather than easing together. This impact creates the characteristic whine associated with straight-cut gears. The noise intensity increases with rotational speed. At high RPM, the rapid succession of impacts generates a continuous high-pitched sound. Racing teams accept this noise because the direct engagement maximizes power transmission efficiency.
The Critical Absence of Axial Thrust
The defining feature of straight-cut gears lies in what they do not produce. Helical gears, with their angled teeth, generate a sideways force called axial thrust. This force pushes the gear along its shaft, trying to slide it out of position. Straight-cut gears generate no such force. The teeth run parallel to the axis of rotation, so the contact force stays entirely within the rotational plane.
This absence of axial thrust changes the mechanical behavior of the entire system. The gear experiences only radial loads, which push directly toward the shaft center. These radial loads are easier to manage than combined radial and axial loads. The gear remains stable on its shaft without additional restraint. This stability simplifies the bearing arrangement considerably.
The physics behind this behavior is straightforward. Force follows the path of least resistance. In a straight cut gear, the tooth face presents a flat surface perpendicular to the direction of rotation. The driving force pushes straight through this surface. No component of the force acts along the shaft axis. The gear stays centered without any external force to counteract sideways movement.
Why No Thrust Matters
Simpler Transmission Design
The elimination of axial thrust simplifies the entire gearbox architecture. A helical gear system requires thrust bearings to absorb the sideways force. These bearings add components, weight, and complexity to the design. A straight cut gearbox eliminates this requirement entirely. The bearing arrangement reduces to simple radial bearings that support the shaft against bending loads.
This simplification extends beyond the bearings themselves. The gearbox housing does not need reinforcement to handle axial loads. Engineers can design a lighter, more compact housing. The overall package size shrinks. This weight reduction matters in racing applications where every pound affects performance. The simpler design also reduces manufacturing complexity. Fewer parts mean fewer potential failure points.
The maintenance burden decreases as well. A straight cut gearbox contains fewer components that can wear out. The bearing arrangement operates under lower stress. This reliability proves valuable in industrial settings where downtime costs money. Operators can run the equipment longer between service intervals.
Reduced Energy Loss from Friction
Friction represents the enemy of efficiency in any mechanical system. Helical gears lose energy through sliding contact between their angled teeth. The teeth rub against each other as they mesh, converting useful power into heat. Straight-cut gears avoid this sliding action entirely. The teeth meet with direct, rolling contact. This rolling action produces significantly less friction than sliding.
The efficiency gain extends to the bearing system as well. Thrust bearings in helical gearboxes consume energy as they manage axial loads. These bearings generate heat and require lubrication. A straight cut gearbox eliminates this parasitic loss. The energy that would have gone into fighting axial thrust instead reaches the output shaft.
The combined effect of reduced tooth friction and eliminated thrust bearing losses makes straight-cut gears notably more efficient than their helical counterparts. In high-power applications, this efficiency difference translates into measurable horsepower savings. Racing teams value this advantage because it means more of the engine's output reaches the wheels. Industrial operators appreciate the reduced heat generation, which extends component life and reduces cooling requirements.
The efficiency benefits of eliminating axial thrust include:
Reduced bearing loads and costs: No large thrust bearings needed, lowering component costs and simplifying the bearing arrangement.
Simpler gearbox housing design: Without axial thrust forces, the housing does not need reinforcement for axial loads, allowing lighter and more compact designs.
Improved reliability: The absence of axial thrust reduces stress on bearings and shafts, decreasing the risk of premature failure in critical applications.
Improved efficiency: Eliminating friction losses from large thrust bearings increases overall system efficiency, particularly in high-power applications.
These advantages make the straight cut gear an excellent choice for power transmission in demanding environments. The design trades acoustic comfort for mechanical simplicity and efficiency. For racing teams and industrial operators, this trade-off delivers clear performance benefits. The spur gear design, with its parallel teeth, remains a fundamental building block in mechanical engineering. Its straightforward operation and robust performance continue to make it a preferred choice in applications where reliability matters more than quiet operation.
Straight Cut vs. Helical Gears
The Core Difference: Tooth Angle
The tooth angle defines the mechanical behavior of each type. This parameter determines engagement, noise, and efficiency.
Feature | Spur Gear (Straight Cut) | Helical Gear |
|---|---|---|
Tooth Angle | Straight (0°) | Angled (Helix Angle) |
Initial Contact | Full Line Contact | Point, then Line |
Total Contact | Shorter Straight Line | Longer Diagonal Line |
The 0° tooth angle of a straight cut gear creates instant full-width engagement. The teeth meet along their entire face at once. Helical units begin contact at a single point. The engagement spreads across the tooth face. This gradual contact reduces impact forces. The longer diagonal contact line allows helical units to share the load across more teeth.
Efficiency and Power Transfer
Minimizing Frictional Losses
Straight-cut gears transfer power with minimal energy loss. The direct tooth engagement produces no sliding motion. Each tooth pushes straight against its partner. This rolling contact generates very little friction.
Helical units lose energy through sliding friction. The angled teeth slide against each other during engagement. This sliding converts power into heat. The friction losses increase with load and speed.
The absence of axial thrust in straight-cut gears further improves efficiency. No energy is wasted pushing the gear sideways against a thrust bearing. The entire power flow moves directly from input to output.
The Impact on Horsepower
The efficiency advantage translates into measurable horsepower gains. A straight cut gearbox delivers more engine power to the wheels compared to a helical design of the same size.
The difference becomes significant at high power levels. A transmission losing 3% to friction in a helical design might lose only 1% with straight-cut types. For a 500-horsepower engine, that 2% difference equals 10 horsepower. The high transmission efficiency of straight-cut types provides a clear performance advantage.
Durability and Load Handling
Strength Under High Torque
Straight-cut types handle high torque loads effectively. The direct tooth contact distributes force evenly across the tooth face. The absence of axial thrust reduces stress on the teeth and bearings.
Helical gears have a higher contact ratio. Spur types typically achieve contact ratios from 1.1 to 1.7. Helical gears reach 2.0 or higher. This means helical types share the load across more teeth. The gradual engagement distributes stress more evenly. This reduces peak stress from bending fatigue and surface pitting.
Helical gears can handle greater torque and power without increased risk of failure. This makes helical types the preferred choice for heavy-duty applications where torque demands are extreme.
The Role of Thrust Bearings in Helical Gears
Helical types generate axial thrust as a consequence of their angled teeth. This sideways force pushes the gear along its shaft. Engineers must add thrust bearings to absorb this load. These bearings add cost, weight, and complexity to the assembly.
The thrust bearings consume energy and generate heat. They require proper lubrication and maintenance. If a thrust bearing fails, the gear shifts out of position. This misalignment leads to rapid wear and potential failure.
A straight cut gearbox eliminates this concern entirely. No axial thrust means no thrust bearings. The design becomes simpler and more reliable. This reliability explains why straight-cut gear types appear in reverse gears of manual transmissions. The reverse gear must handle high torque in a compact package. This gear design fits the requirement perfectly.
Advantages of Straight Cut Gears
Superior Power Transfer Efficiency
The direct tooth engagement of straight-cut gears delivers power with remarkable efficiency. Each tooth face meets its partner squarely, with no sliding motion between surfaces. This rolling contact minimizes frictional losses that plague angled tooth designs. The energy that would otherwise convert to heat instead reaches the output shaft.
This efficiency advantage proves critical in racing applications. A straight cut gearbox can transmit a higher percentage of engine output to the wheels compared to a helical design of identical size. The difference becomes measurable at high power levels. Less energy wasted as heat also means lower operating temperatures. Cooler components experience less thermal stress and maintain their dimensional stability longer.
The absence of axial thrust further reduces parasitic losses. Helical gears push sideways against thrust bearings, consuming energy in the process. Straight-cut gears generate no such force. Every bit of input power flows directly through the gear train without fighting lateral loads. This clean power path explains why performance engineers choose this design when every horsepower matters.
Increased Durability and Strength
The robust construction of straight-cut gears makes them exceptionally durable under demanding conditions. High-torque applications require materials that resist wear and fatigue. Manufacturers select alloy steels specifically for their strength properties. Steel alloy 8620 offers a carburizable surface with a tough core, ideal for automotive transmission gears. Steel alloy 4140 provides through-hardenable strength suitable for industrial applications. Steel alloy 4340 delivers ultra-high strength for aerospace and heavy-duty use.
Manufacturing processes enhance these material properties further. Forging aligns the grain structure, significantly increasing fatigue resistance. Carburizing adds carbon to create a hard, wear-resistant case over a ductile core. Nitriding introduces nitrogen at lower temperatures, providing surface hardness with minimal distortion. Shot peening induces compressive residual stresses that improve bending and contact fatigue life.
For high-torque positions in heavy truck driveline bull gears and construction equipment, manufacturers combine high-strength alloy steels with carburizing and precision grinding. This approach stabilizes contact patterns under load. Agricultural machinery benefits from carburizing or nitriding heat treatment paired with shot peening. These processes directly address durability requirements under harsh duty cycles.
Simpler and More Compact Design
No Need for Complex Thrust Management
The elimination of axial thrust transforms the gearbox architecture. Helical gears require thrust bearings to absorb sideways forces. These components add weight, cost, and complexity. A straight cut gearbox eliminates this requirement entirely. The bearing arrangement reduces to simple radial bearings that support the shaft against bending loads.
This simplification extends to the housing design. Without axial forces to manage, engineers can create lighter, more compact enclosures. The overall package size shrinks. Fewer components mean fewer potential failure points. Maintenance becomes more straightforward. Operators can service the gearbox with less downtime, a critical factor in industrial settings where every minute of operation counts.
Easier to Manufacture and Rebuild
The straight tooth profile simplifies production. A hobbing or shaping machine can cut spur teeth quickly and economically. The geometry requires no complex angle calculations. This manufacturing ease translates to lower production costs compared to helical alternatives.
Rebuilding a straight cut gearbox also proves simpler. Technicians can inspect and replace individual gears without specialized alignment procedures. The straightforward design allows for faster turnaround during maintenance. Racing teams appreciate this advantage during quick pit stops. Industrial operators value the reduced labor costs associated with gearbox overhauls. The combination of simple manufacturing and easy rebuildability makes this gear design a practical choice for applications where reliability and serviceability matter most.
Disadvantages of Straight Cut Gears
The Infamous Gear Whine
Why They Are So Loud
The noise generated by straight-cut gears is not a minor annoyance. It is a defining characteristic of the design. The entire tooth width contacts the mating gear simultaneously. This abrupt engagement creates impact loading and vibration. Each tooth pair slams together rather than sliding into place. The result is a continuous, high-pitched whine that intensifies with speed.
Helical gears avoid this problem through their angled tooth design. The teeth engage gradually from one end to the other. This spreads the load across multiple teeth and produces smoother torque transfer. The operation remains significantly quieter. The contrast between the two designs could not be more pronounced.
User | Reported Disadvantage for Street Use |
|---|---|
Sam_68 | Excessive noise (painfully noisy); clunky gear engagement when combined with dog engagement, especially at low speeds or when selecting first gear at traffic lights. |
Gad-Westy | Massively noisy, causing serious ear ringing after a 700-mile road trip despite ear protection; noise so offensive that cruising in a higher gear at high RPM was preferred to reduce whining. |
spaximus | Could not live with a straight cut gearbox on the road, describing it as too hardcore for daily use. |
Porkie | Straight cut gears are noisy; even a supposedly 'nicer' sequential box with straight cut gears was still noisy, and the noise was the main drawback for road use. |
The Impact on Daily Driving Comfort
The noise problem extends beyond mere irritation. One user reported serious ear ringing after a 700-mile road trip, even while wearing ear protection. Another described the sound as painfully noisy in stop-and-go traffic. The whine becomes particularly offensive when selecting first gear at traffic lights. The clunky engagement adds to the discomfort.
Some jurisdictions restrict the use of these gears on public roads. The noise levels exceed legal limits for vehicle operation. Drivers who install a straight cut gearbox for street use risk fines or failed inspections. The acoustic penalty makes daily commuting exhausting. Long highway drives become endurance tests rather than relaxing journeys.
High Cost and Limited Street Usability
Premium Materials and Manufacturing
The manufacturing process for straight-cut gears demands exceptional precision. Each tooth must meet exact dimensional tolerances. The gear faces require hardening to withstand the impact loading of direct engagement. Manufacturers use premium alloy steels and specialized heat treatment processes. Carburizing and nitriding add surface hardness while maintaining a tough core.
The equipment needed for this work adds to the expense. Precision grinding machines and advanced hobbing systems represent significant capital investment. The skilled labor required to operate this machinery commands higher wages. These factors combine to make straight-cut gears considerably more expensive than their helical counterparts. The cost difference becomes substantial when replacing an entire gearbox.
Not Ideal for Stop-and-Go Traffic
The design characteristics that benefit racing create problems in everyday driving. The abrupt engagement makes smooth launches difficult. Drivers must modulate the throttle carefully to avoid jerky movements. The clunky gear changes become tiresome in congested conditions. One user described the experience as too hardcore for daily use.
The transmission also demands more frequent maintenance in street applications. The impact loading accelerates wear on gear teeth and bearings. Racing teams rebuild gearboxes after every event. Street drivers would face similar maintenance intervals. The combination of high purchase cost and frequent service requirements makes this gear design impractical for most road vehicles. The spur gear configuration remains a specialized tool for specialized purposes.
Applications of Straight Cut Gearbox in Racing and Industry
The applications of straight cut gearbox technology span two demanding worlds: competitive motorsport and heavy industry. Both sectors prioritize mechanical efficiency and reliability over acoustic comfort. The design characteristics that make these gears loud also make them exceptionally effective for transferring power under extreme conditions.
The Case for Racing and Performance
Maximizing Every Horsepower
Racing teams adopt straight cut gears because the design wastes almost no engine output. The direct tooth engagement eliminates the lateral force that plagues helical designs. Every unit of power flows straight through the gear train without sideways deflection. This efficiency translates directly into faster acceleration and shorter lap times.
The performance advantages appear across multiple measurable factors. Power transfer improves because no lateral force diverts energy away from the drivetrain. Weight decreases because the gearbox requires no additional bearing to counteract axial load. High-torque suitability improves because the gear teeth can handle extreme loads without self-destruction. Together, these factors allow aggressive power delivery out of corners without mechanical failure. The table below summarizes these racing benefits:
Performance Factor | Straight Cut Gears Advantage | How It Improves Lap Times |
|---|---|---|
Power Transfer | No lateral force; transmits all engine power without waste | More power reaches the wheels, reducing acceleration time |
Weight | No additional bearing needed to counteract axial load | Lower weight-to-power ratio improves cornering and braking |
High-Torque Suitability | Can handle extreme torque without risk of self-destruction | Allows aggressive power delivery out of corners without mechanical failure |
Withstanding Extreme Conditions
Racing environments punish every component. Engines run at sustained high RPM. Gearboxes endure thousands of gear changes per event. The straight cut gearbox survives these conditions because its simple design has fewer failure points. No thrust bearings means no thrust bearing failures. The direct tooth contact distributes stress evenly across the entire face.
The impact loading from abrupt engagement actually benefits racing applications. The teeth remain in constant contact with no sliding motion. This reduces heat generation inside the gearbox. Lower operating temperatures extend lubricant life and maintain dimensional stability. Racing teams can push the transmission harder without worrying about thermal breakdown.
Industrial and Heavy-Duty Uses
Reliability in Mining and Construction
Mining and construction machinery operates in brutal environments. Dust, vibration, and shock loads challenge every component. A straight cut gearbox delivers the reliability these industries demand. The robust tooth profile handles high torque without premature wear. The absence of axial thrust reduces stress on bearings and shafts.
Precision in Oil Extraction and Wind Power
Oil extraction and wind power installations demand components that operate reliably for decades. A straight cut gearbox in these applications must maintain stable performance under continuous load. The simple geometry allows for precise manufacturing tolerances. This precision ensures smooth meshing and low temperature rise during operation. Wind power installations benefit from the long service life and stable performance of precision-ground spur gears. The combination of high gear precision and excellent meshing characteristics ensures these installations run efficiently for years without unscheduled maintenance. These gearboxes also support diaphragm pump spare parts and fracturing pump gearboxes in oil extraction.
Precision Manufacturing: The CZ South Drive Advantage
Understanding the physics of a straight cut gear is only half the equation; manufacturing it to microscopic tolerances is where true reliability is born. At CZ South Drive's manufacturing facilities, we specialize in engineering high-performance straight cut gears that withstand the most brutal industrial environments.
Premium Metallurgy: We utilize high-grade alloy steels including 40Cr, 42CrMo, and 20CrMnTi, tailored to your specific torque and shock-load requirements.
Advanced Heat Treatment: Our precision carburizing and quenching processes guarantee a hard, wear-resistant tooth surface while maintaining a tough, shock-absorbing core.
CNC Precision Machining: Utilizing state-of-the-art hobbing and grinding machines, we ensure your straight cut gears meet stringent international accuracy standards, minimizing operational vibration.
Certified Quality: We hold ISO 9001:2008 certification, ensuring consistent, traceable quality for global OEMs and heavy machinery manufacturers.
Straight cut gears eliminate axial thrust, which drives their efficiency gains and their acoustic penalties. The direct tooth engagement delivers superior power transfer and durability, but the abrupt contact produces that unmistakable whine. This trade-off defines their purpose.
Modern road-going cars use helical gearboxes, as they are smoother and produce less noise. The tradeoffs of noisy operation and abrupt gear changes do not matter much in a racecar.
For most drivers, a helical transmission remains the superior choice. A straight cut gearbox serves racing and heavy industry exceptionally well. The spur design offers strength where it matters. Consider your priorities: raw performance or daily comfort. Your driving environment should guide that decision.
FAQ
Why do straight cut gears produce that distinctive whine?
The entire tooth width contacts the mating gear at once. This abrupt engagement creates impact vibration. Helical gears slide into contact gradually, producing less noise. A straight cut gearbox accepts this acoustic penalty for mechanical efficiency. The gearbox design prioritizes power transfer over comfort.
Can a straight cut gearbox work for daily street driving?
Technically yes, but practically uncomfortable. The noise becomes exhausting on long trips. Some jurisdictions restrict these gearboxes on public roads. The clunky engagement makes stop-and-go traffic difficult. Most drivers find a helical gearbox far more livable for daily use.
Are straight cut gears more durable than helical gears?
Straight cut gears handle high torque effectively. The direct tooth contact distributes force evenly. No axial thrust reduces bearing stress. However, helical gears share loads across more teeth. Both designs prove durable when manufactured with quality materials and proper heat treatment.
Why do racing teams prefer a straight cut gearbox?
Racing demands maximum power transfer. A straight cut gearbox eliminates axial thrust losses. The simpler design reduces weight. No thrust bearings means fewer failure points. Teams accept the noise because the efficiency gain translates directly into faster lap times.
Do straight cut gears need different maintenance than helical gears?
The maintenance intervals differ. The impact loading accelerates wear on gear teeth. Racing teams rebuild their straight cut gearbox after every event. Industrial operators schedule regular inspections on their gearboxes. The simpler design makes rebuilding easier. Fewer components mean fewer potential failure points.
Which industries rely on straight cut gearboxes?
Manufacturers utilize industrial sprockets and heavy-duty drive components for mining and construction machinery extensively. Oil extraction equipment depends on their reliability. Wind power installations benefit from their long service life. This gearbox type proves essential in harsh environments.
How much efficiency do straight cut gears actually save?
The exact percentage varies by application. A straight cut gearbox eliminates thrust bearing losses entirely. No sliding friction occurs between teeth. This gearbox design delivers measurable efficiency gains. Racing teams report meaningful horsepower savings at high power levels.
What is the difference between a spur gear and a straight cut gear?
They are the same thing. Spur gear is the technical term. Straight cut gear is the common name. Both describe teeth cut parallel to the axis of rotation. This design appears in reverse gears of manual transmissions and racing gearboxes.
